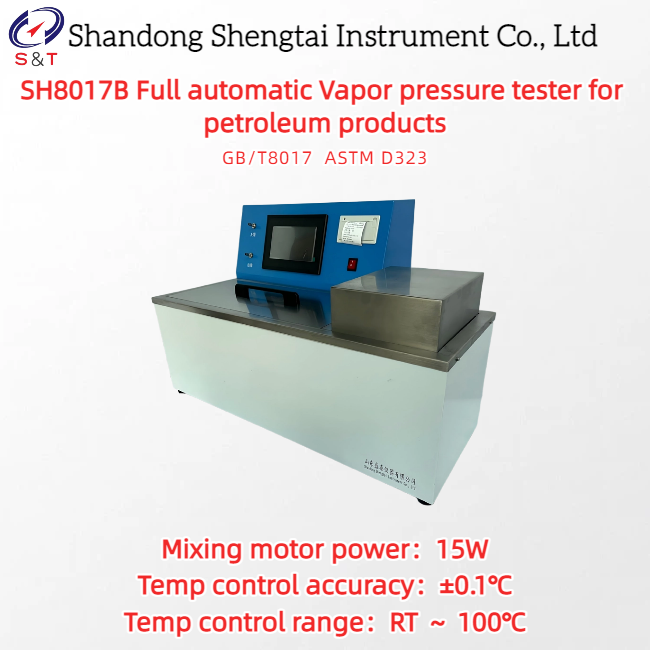

SH8017B Full automatic Vapor pressure tester for petroleum products
SH8017B Automatic petroleum product vapor pressure tester is designed and manufactured according to GB/T 8017 "petroleum product vapor pressure measurement method (Reid method)".
Suitable for measuring the vapor pressure of gasoline, volatile crude oil and other volatile petroleum products.

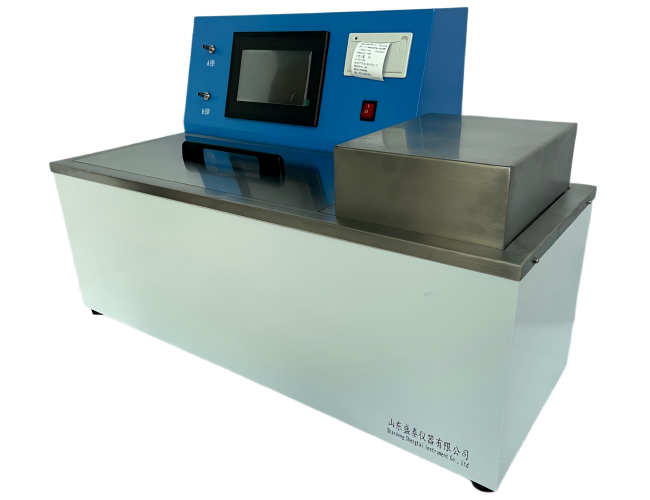

The instrument is mainly composed of color LCD touch screen, water bath box and temperature control device, vapor pressure bomb, pressure sensor, mechanical rotation and other parts.With the use of flexible, easy to move, and with printing, fault self - check and other characteristics.
| Testing items |
Suitable for measuring the vapor pressure of gasoline, volatile crude oil, and other volatile petroleum products |
| Standards |
GB/T 8017 ASTM D323 |
| Simple technical features or parameters |
Color LCD touch screen, water bath box and temperature control device, Vapor pressure bomb, pressure sensor, mechanical rotation and other parts. Flexible to use, easy to move, and equipped with printing, fault self inspection, etc |
Main Performance Characteristics
● 7 inch color touch screen, do not need training can be completed according to the screen prompts.
● Chinese operation interface, page arbitrary switch, simple and convenient operation.Automatic pressure detection, collection, calculation, automatic temperature control, automatic timing, automatic printing results, super capacity storage function, can store tens of thousands of data, can be queried.
● Constant temperature water bath by circulation system, with mixing function, make the water bath temperature uniform without dead Angle, high temperature control accuracy.
● Safety performance: automatic diagnosis, over temperature alarm and automatically cut off the power supply of the heater, the test is completed with alarm function.
● With on-line adjustment function, can effectively correct the deviation of pressure and temperature sensor.
Main technical parameters
| Heating power |
1.8KW |
| Mixing motor power |
15W |
| Pressure measurement |
0 ～ 200KPa |
| Temp control range |
RT ～ 100℃ |
| Temp control accuracy |
±0.1℃ |
| Display accuracy |
LCD, 0.1KPa |
| Pressure range |
0 ～ 200KPa |
| Constant temp water bath |
37.8° |
| Number of hanging bullets |
2 bullets |
| Angle degree |
The automatic rotation angle of the instrument is 30 ° |
| Sensor |
PT100 |
| Working power supply |
AC220V±10％ 50HZ |
| Instrument size |
900 * 450 * 650mm |
| Instrument weight |
50kg |
| Package size |
850*550*580 mm |
| Package weight |
54kg wooden |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N |
Name |
Unit |
Quantity |
Remarks |
| 1 |
Vapor pressure meter |
Set |
1 |
|
| 2 |
Steam bomb |
Set |
2 |
|
| 3 |
Pressure gauge |
Piece |
2 |
|
| 4 |
Temperature sensor |
Piece |
1 |
|
| 5 |
Instruction |
Copy |
1 |
|
| 6 |
Packing list |
Copy |
1 |
|
| 7 |
Certificate warranty card |
Copy |
1 |
|
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
